SIP Industrial Phone TR-069 Configuration and Support Guide

Overview

TR-069

TR-069 is the CPE WAN Management Protocol developed by the DSL Forum. It defines a secure framework for an ACS to automatically configure and centrally manage CPE devices.

    Figure 1-1 TR-069 design diagram

Applicable Models

This document applies to access control devices and phone devices.

Target Audience

This document is intended for R&D and test engineers who need to understand TR-069 configuration, RPC methods, TR-111 extensions and parameter models.

ACS / CPE

ACS  Auto-Configuration Server
CPE  Customer Premises Equipment

Configuring TR-069 on the Phone

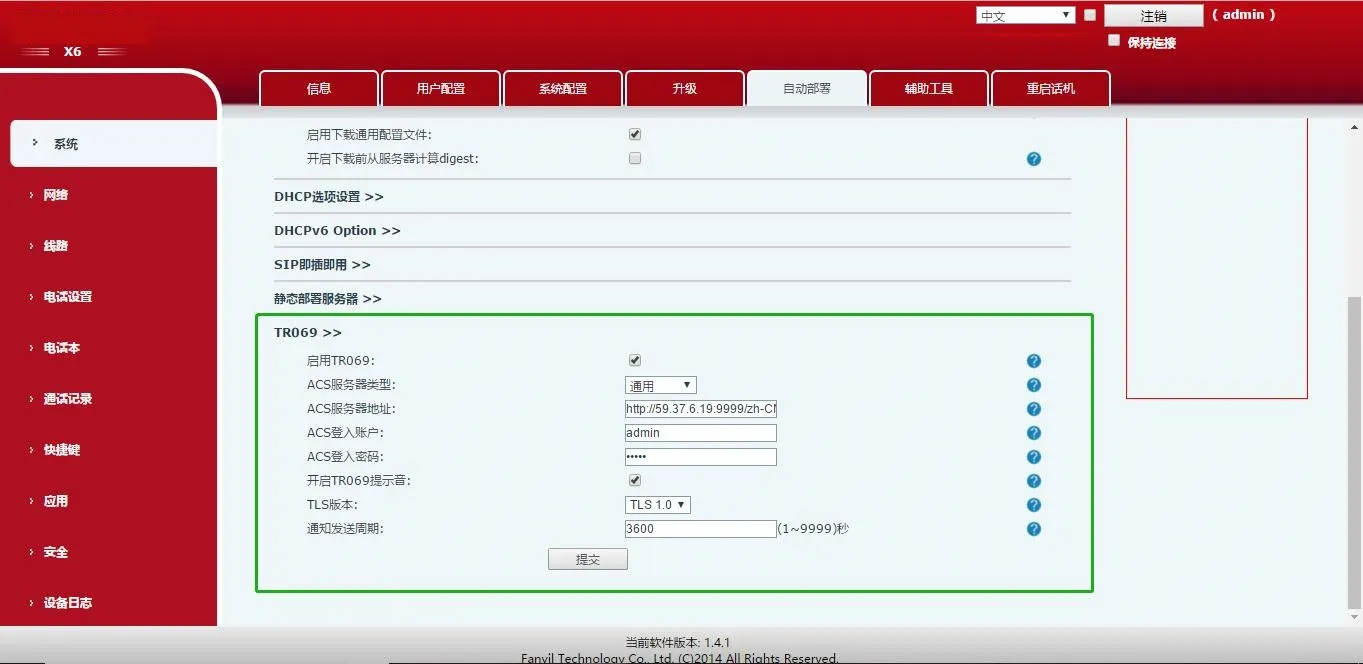

TR-069 is disabled by default. Log in to the web page as administrator, open System → Auto Provision → TR069, and configure parameters in the corresponding area.
  Figure 2-1

TR-069 RPC Methods Supported by the Phone

RPC methods provide bidirectional communication between the CPE and ACS. The ACS can get, set, monitor and maintain device parameters through RPC.

Support for TR-111

TR-111 extends the TR-069 family with device-gateway association and NAT connection request mechanisms, helping the ACS manage LAN-side devices.

Device-Gateway Association

TR-111 supports gateway association so that the ACS can identify the gateway used by a LAN-side device.

NAT Connection Request

TR-111 supports UDP/STUN based connection requests for CPE devices located behind NAT gateways.

TR-069 Protocol Parameter Model

The architecture includes Internet Gateway Device and LAN Device data models. Parameter names use a dotted tree hierarchy and parameter types are based on SOAP data types.

1. Internet Gateway Device

2. LAN Device

3. Parameter names use a dotted tree hierarchy.

4. Parameter types are based on SOAP data types.
